Help AUTO-FILLING LEVEL SENSOR

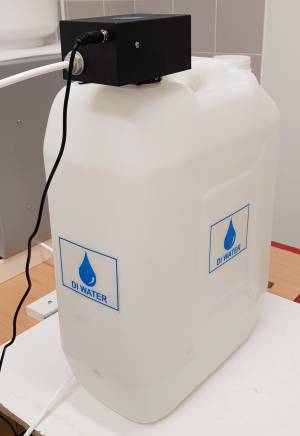

The auto-filling system connected to the output of a water purifier allows to fill a tank and to stop automatically when the tank is full of demineralised water.
This can be used directly on the watertank of a chemistry analyser, to fill it automatically, avoiding to stop momentary the instrument.

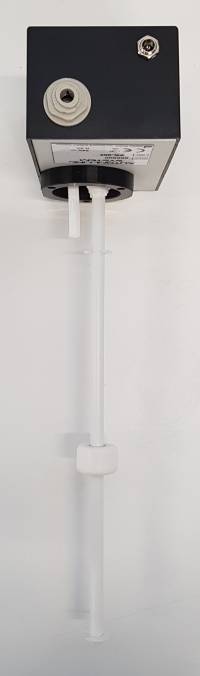

The new auto-filling level sensor designed by DiaSys can be connected to the output of any type of water purifier, to feed continously a watertank of a chemistry analyser.
specifications :
- plunger height : 275 mm
- tank neck diameter : 35 to 41 mm
- universal power supply wallplug 110V-220V
- water purifier connector: 1/4“ quick fit connector
The new auto-filling level sensor is especially designed to work with the chemistry analysers DiaSys Respons 920 and DiaSys Respons 940.
